Description

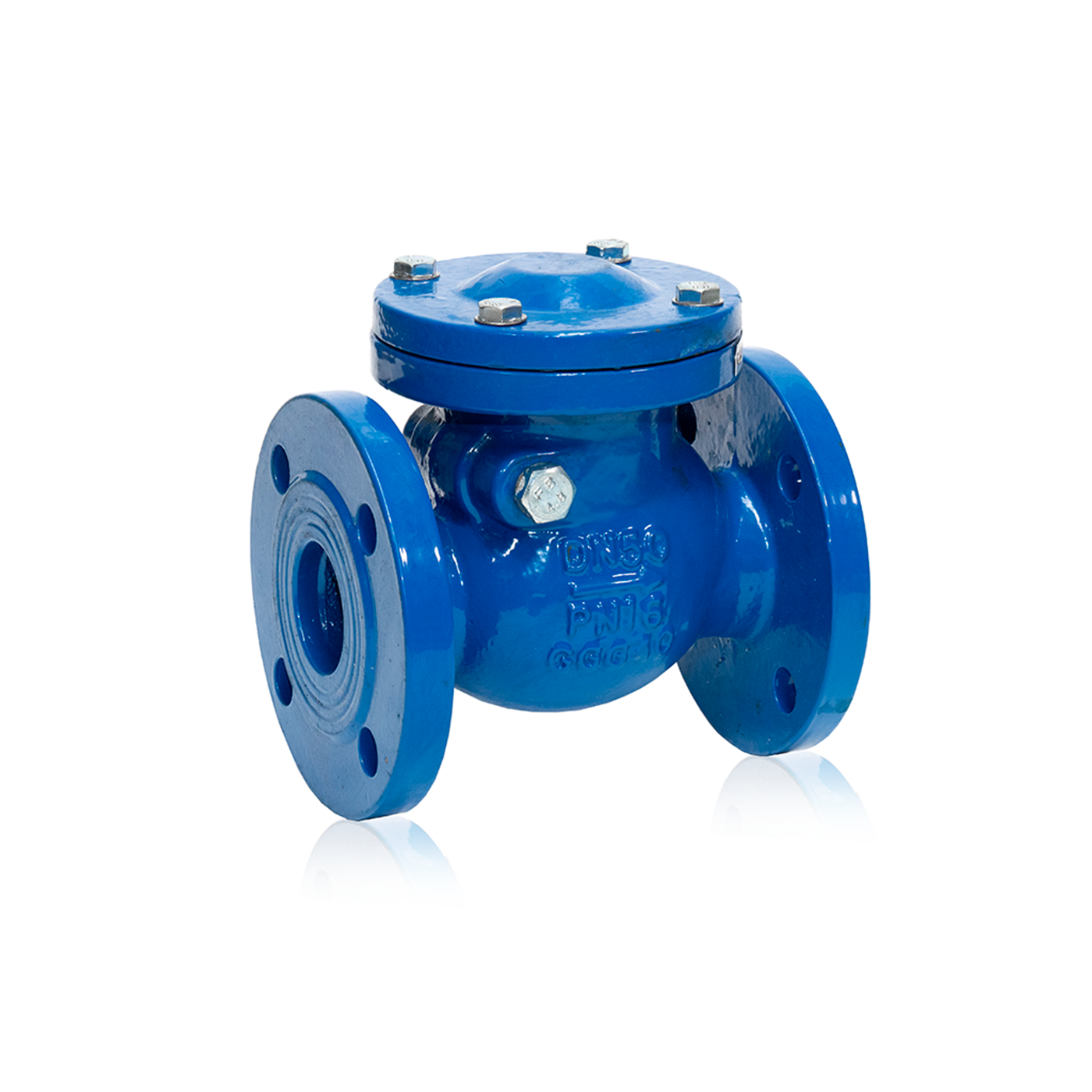

Swing check valve used for potable water and neutral liquids. Flanged, non-return valve.

Working Temperature: -10°C to 120°C;
Standards: Designed according to DIN3202 F6;
Flanges: EN1092-2;
Body: GGG50 Ductile iron;
Body seal: Bronze;
Disc: GGG50 Ductile iron;
Disc seal: Bronze;
Arm: GGG50;
Hinge pin: SS420 Stainless steel;
Cover: GGG50;
Corrosion protection: RAL 5005 epoxy powder coating, applied internally and externally, minimum layer thickness 250 µm;
Pressure Tests: individually hydrostatically tested according to BS EN12266-1 (Seal 1.1 x PN, Body 1.5 x PN);
Used for pumping stations, potable or raw water and pipe networks;
Approvals: PED 014/68/UE No.1282, Category III / Model H;
Certificate Euroins: ACS no. 23 ACC NY 259 for use in contact with drinking water;
3.1 Certificate.
