Description

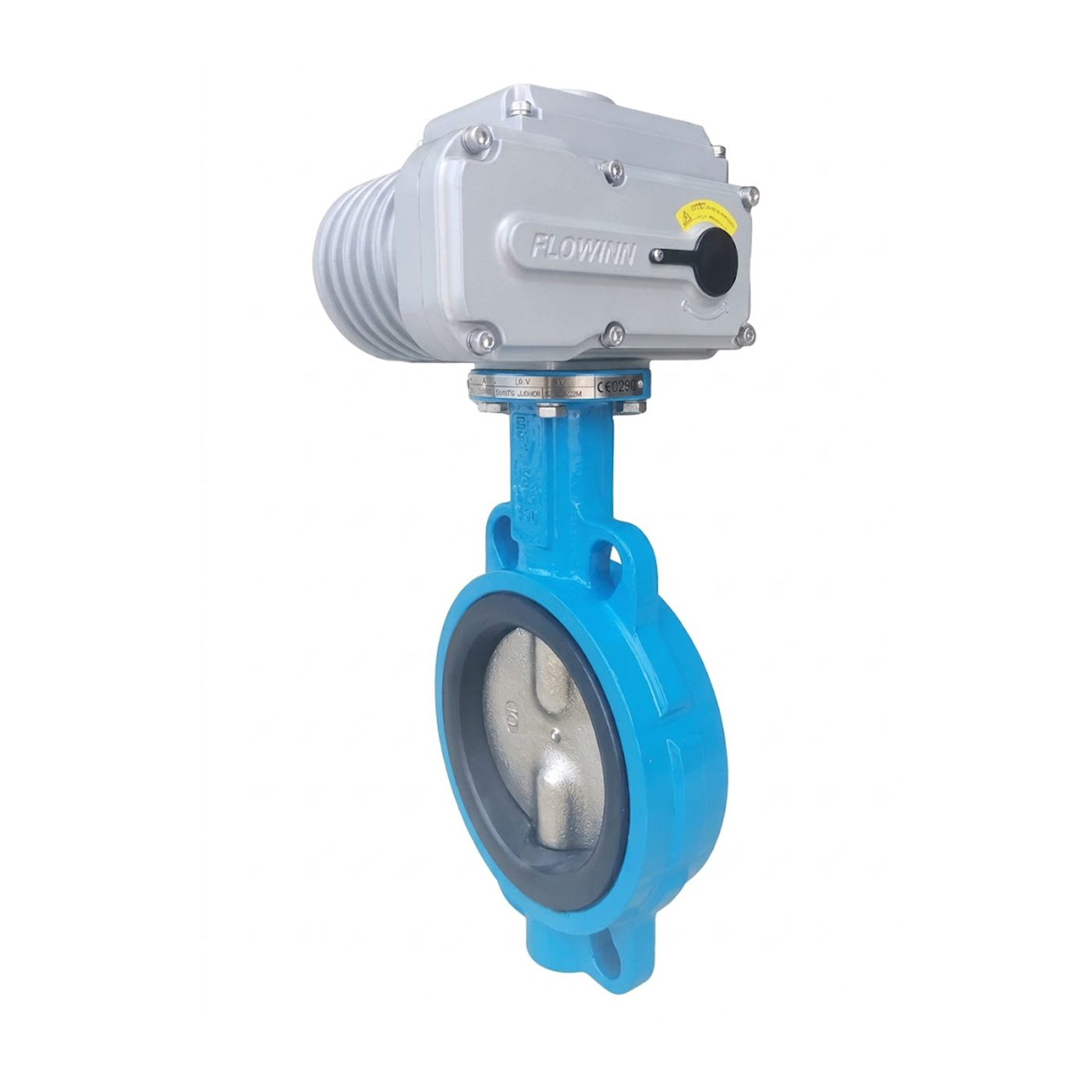

Belven wafer butterfly valve, GG25 epoxy-coated body, two-piece shaft.

Seat options: EPDM / NBR / PTFE / KFM / SILICONE (specify at order);
Disc options: GGG40+Ni or CF8M stainless steel (specify at order);
Nominal pressure: PN10/16.

Flowinn EOT Actuator.

Control / feedback: On/off or modulating 4-20 mA (specify configuration);
Power supply: 230 VAC or 24 VDC (specify configuration);
Protection: IP68;
Features: Quarter-turn 90°; adjustable travel limit contacts, open/closed supervisory contacts, anti-condensation heater, integrated motor protection, mechanical position indicator, manual hex-key or handwheel override;
Selection: Confirm valve size availability, disc option, actuator torque/model, mounting kit and pressure rating with supplier.
