Description

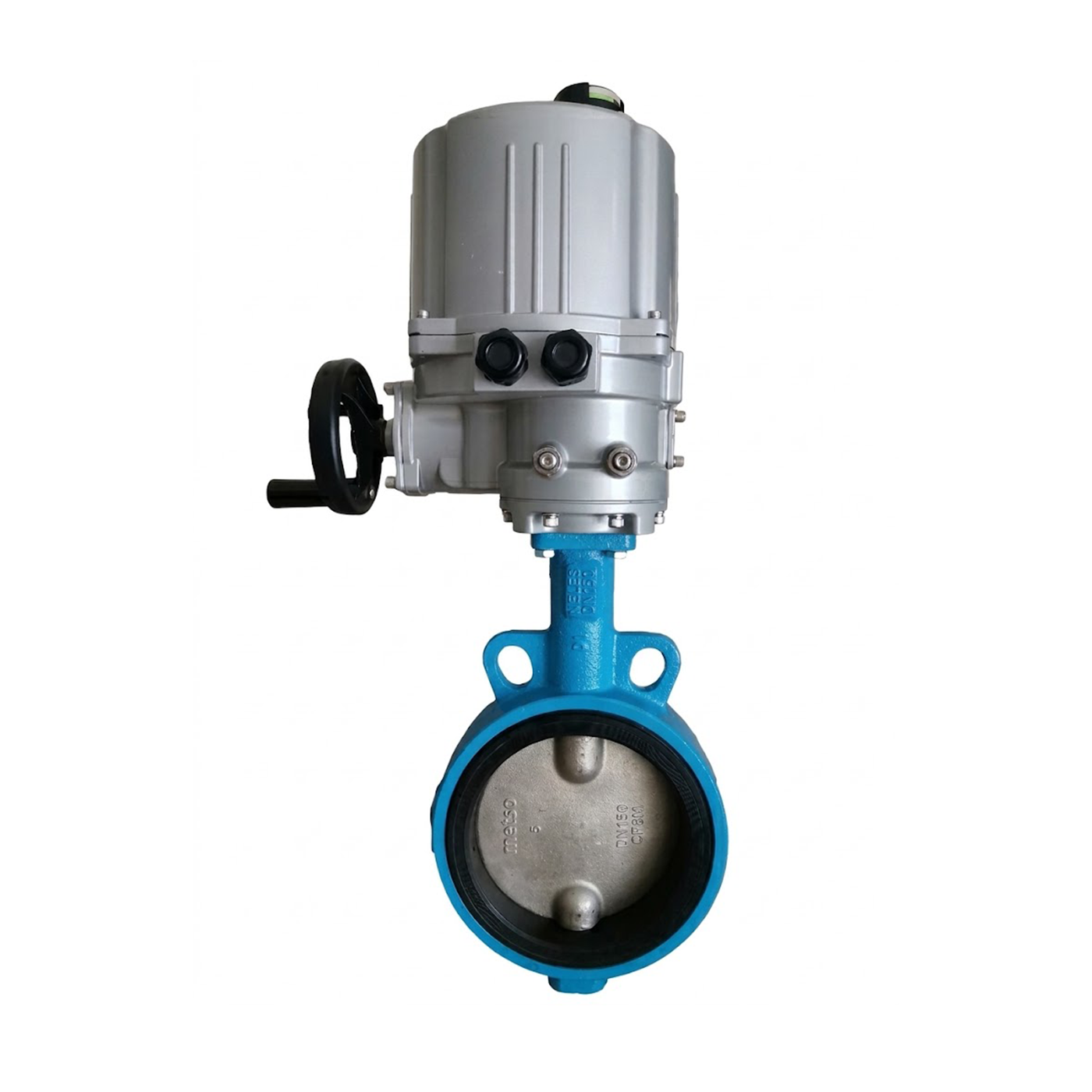

Belven wafer butterfly valve, GG25 epoxy-coated body, two-piece shaft.

Seat options: EPDM / NBR / PTFE / KFM / SILICONE (specify at order).
Disc options: GGG40+Ni or CF8M stainless steel (specify at order).
Nominal pressure: PN10/16.

Flowinn EOH Basic Actuator

Control / feedback: On/off; optional 4-20 mA position feedback
Power supply: 230 VAC single-phase or 400 VAC three-phase (specify configuration)
Protection: IP68
Features: Quarter-turn 90°; adjustable torque and travel limits, motor thermal protection, anti-condensation heater, mechanical position indicator, declutchable handwheel.
Selection: Confirm valve size availability, disc option, actuator torque/model, mounting kit and pressure rating with supplier.
