Description

BKF002 double eccentric flanged butterfly valve for potable, cold and hot water networks; working temperature 0°C – 80°C.

EN 1092-2 flanges; internal and external RAL 5005 epoxy coating, minimum 250 µm.
Certifications: PED 2014/68/EU No.1282, Category III / Model H; WRAS 2010376; ACS 25 ACCNY 257 (per supplied product list).
Nominal pressure: PN10/16.

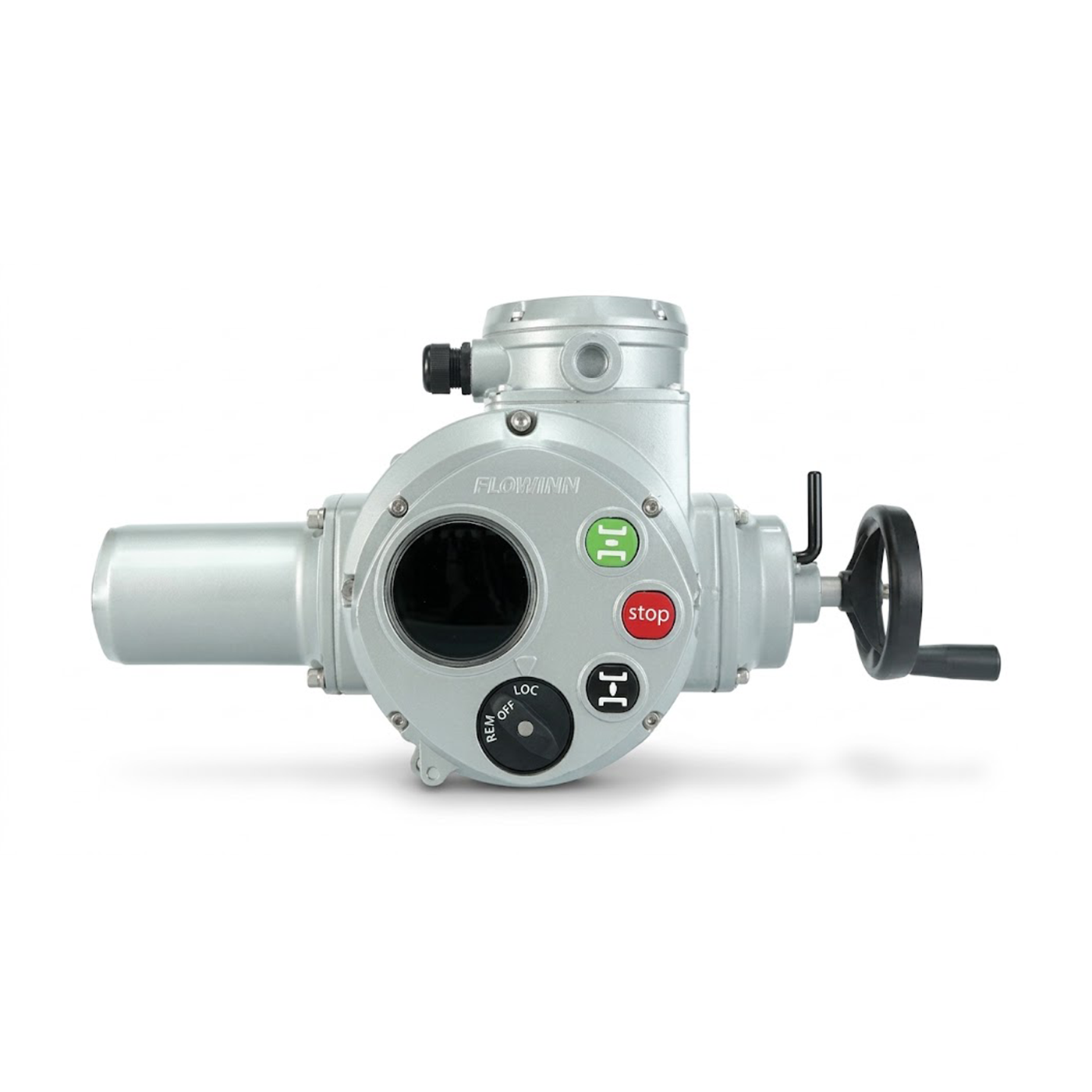

 Flowinn EMD Intelligent Actuator.

Control / feedback: 4-20 mA analog or digital input; 4-20 mA position feedback
Power supply: 400 VAC three-phase
Protection: IP68
Features: Multi-turn; integrated local/remote LCD control, electronic torque/travel limits, alarm feedback, auto-phasing, anti-condensation heater, declutchable handwheel.
Selection: Requires compatible 90° reduction gearbox or drive interface. Confirm BKF002 size, valve torque, actuator model, gearbox ratio, mounting and electrical configuration with supplier.
