Description

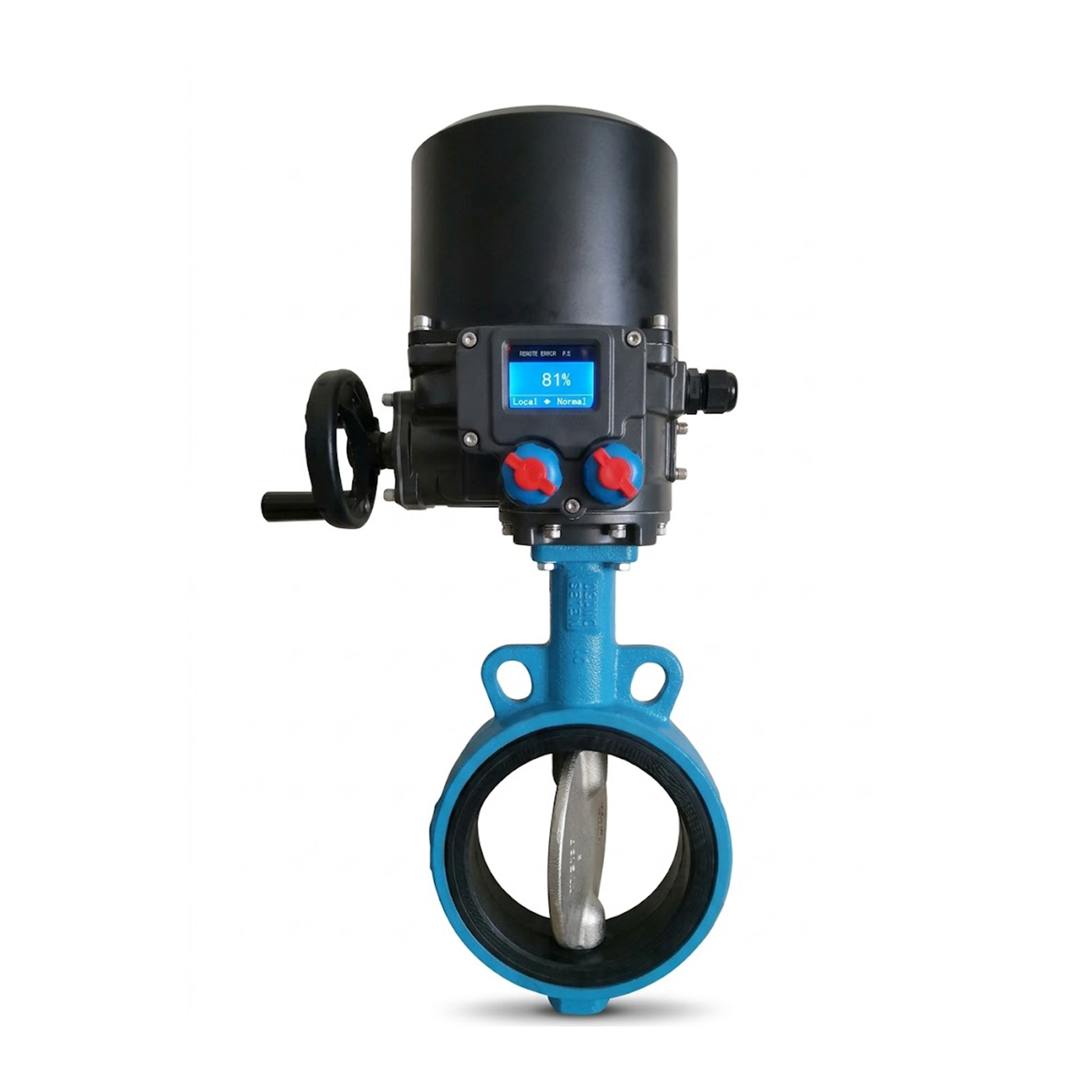

Belven wafer butterfly valve, GG25 epoxy-coated body, two-piece shaft.

Seat options: EPDM / NBR / PTFE / KFM / SILICONE (specify at order).
Disc options: GGG40+Ni or CF8M stainless steel (specify at order).
Nominal pressure: PN10/16.

Flowinn EOM Intelligent Actuator.

Control / feedback: Analog 4-20 mA or digital input; 4-20 mA position feedback
Power supply: 400 VAC three-phase
Protection: IP68 (ATEX certification available on request)
Features: Quarter-turn 90°; local control panel with buttons, local/remote control, LCD display, adjustable electronic torque/travel limits, anti-condensation heater, declutchable handwheel.
Selection: Confirm valve size availability, disc option, actuator torque/model, mounting kit and pressure rating with supplier.
