Description

BKF002 double eccentric flanged butterfly valve for potable, cold and hot water networks; working temperature 0°C – 80°C.

EN 1092-2 flanges; internal and external RAL 5005 epoxy coating, minimum 250 µm.
Certifications: PED 2014/68/EU No.1282, Category III / Model H; WRAS 2010376; ACS 25 ACCNY 257 (per supplied product list).
Nominal pressure: PN10/16.

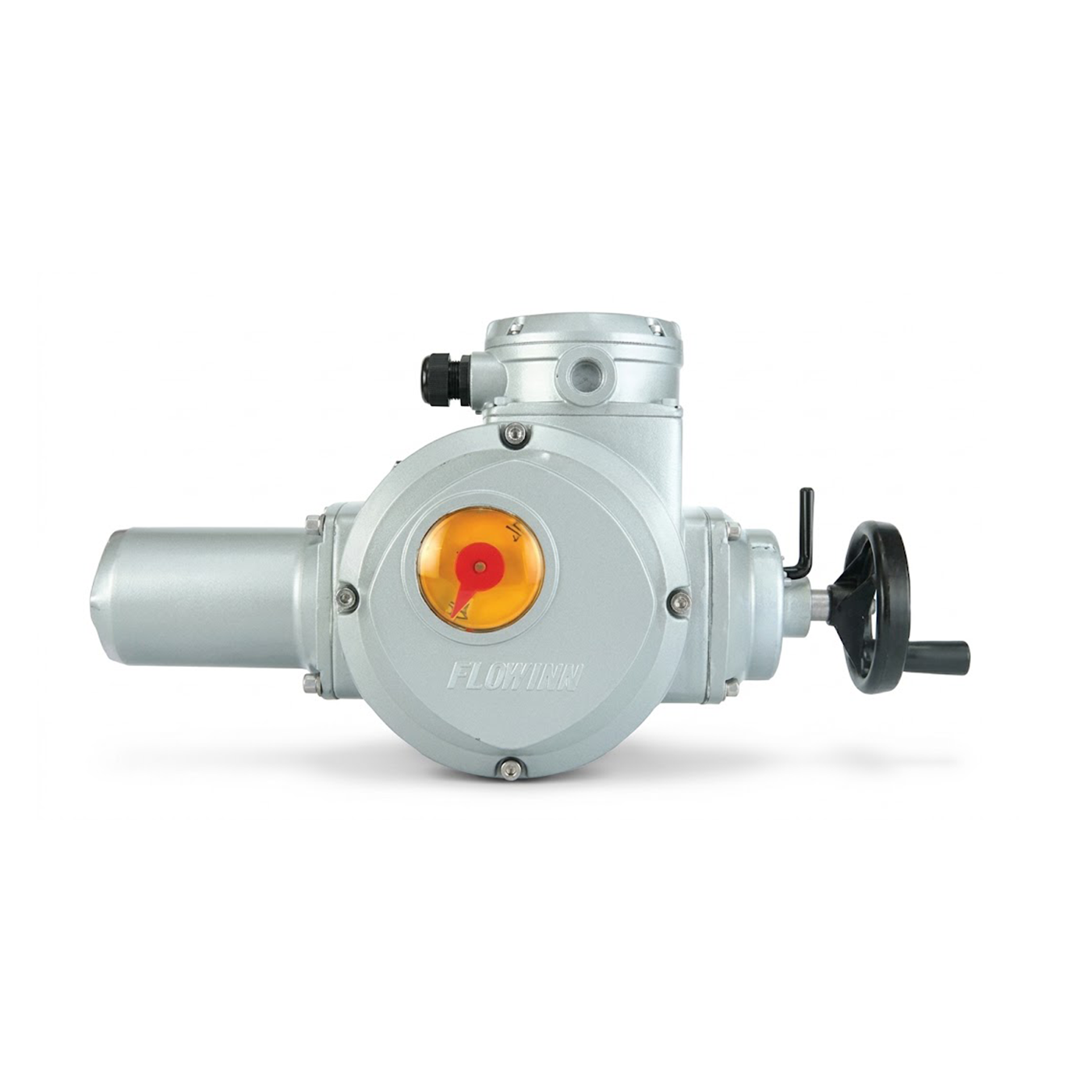

Flowinn EMD Basic Actuator.

Control / feedback: On/off; optional 4-20 mA position feedback
Power supply: 230 VAC single-phase or 400 VAC three-phase (specify configuration)
Protection: IP68
Features: Multi-turn; adjustable travel and torque limits, motor thermal protection, anti-condensation heater, mechanical position indicator, declutchable handwheel.
Selection: Requires compatible 90° reduction gearbox or drive interface. Confirm BKF002 size, valve torque, actuator model, gearbox ratio, mounting and electrical configuration with supplier.
