Description

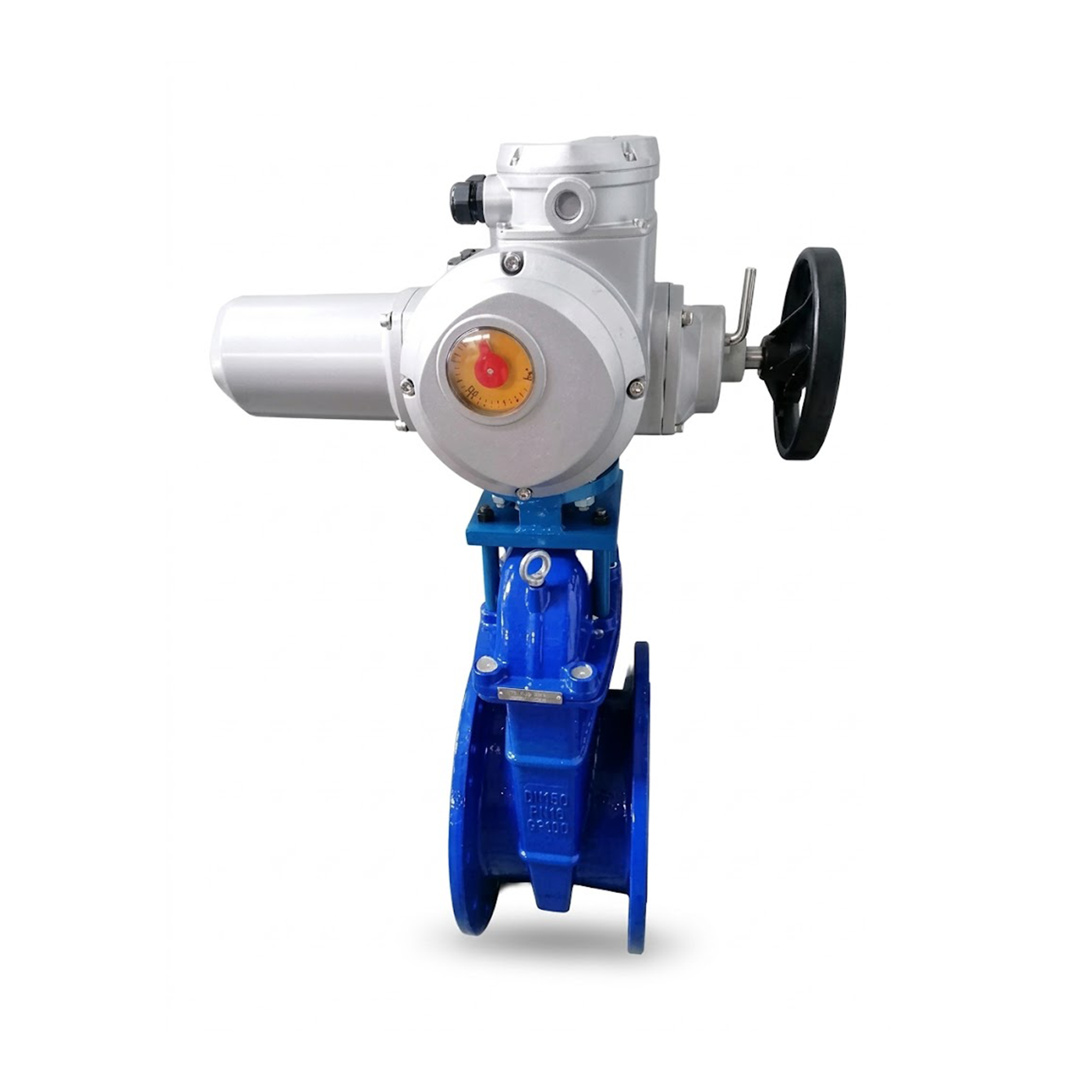

Flat-body F4 resilient seated gate valve,

GGG50 ductile-iron body/bonnet, EPDM-encapsulated wedge; SS420 stem.
Suitable for potable water and neutral liquids; working temperature 0°C–80°C.
Nominal pressure: PN10/16.

Flowinn EMD Basic Actuator.

Control / feedback: On/off; optional 4-20 mA position feedback
Power supply: 230 VAC single-phase or 400 VAC three-phase (specify configuration)
Protection: IP68
Features: Multi-turn; adjustable travel and torque limits, motor thermal protection, anti-condensation heater, mechanical position indicator, declutchable handwheel.
Selection: Confirm actuator torque/model, stem interface, mounting kit and electrical configuration with supplier.
